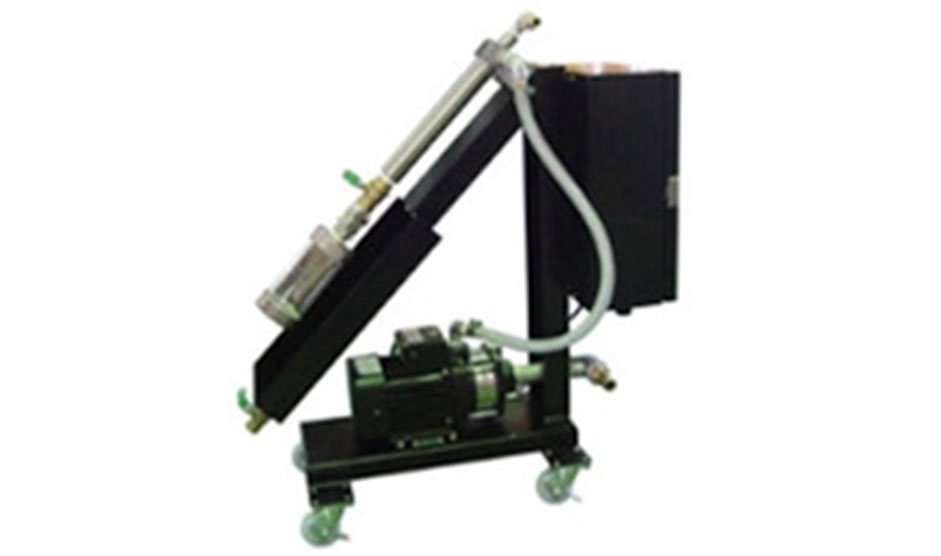

FILSTAR- PU(pump unit) All-in-one package unit

Standard model of easy installation unit

Main equipment
FILSTAR Pump Drain cup Control panel

From that day when it arrived high precision filtration is realized.

All-in-one package unit with pump and drain cup attached to FILSTAR can easily be installed by connecting the outlet nozzle of FILSTAR to an existing tank and the inlet nozzle of FILSTAR to the tank of the solution which should be treated.

Standard lineup

FILSTAR PU STANDARD LINEUP

Specifications	KS15-PU	kss20-PU	KSM25-PU
Common	Drive power supply:AC 200V(standard), 100V(option) Target liquid :water soluble cutting oil, cleaning liquid, water (low viscous liquid) Dimentions :250×1,000×1,200 mm
Flow rate (L/min)	15~20	20~30	50~60
Connection	15A	20A	25A
Particle size	10μm~2mm	10μm~3mm	10μm~3mm
Drawing	200v 100v	200v 100v	200v 100v

Please contact us for other special specifications
